Linux Basics for Ubuntu

Summary

Estimated time to completion: 0.5 hours

What will you learn with this unit?

What is a terminal
What is the Bash Shell
Filesystem Commands
Getting Help
Scripting
Piping and Grabbing

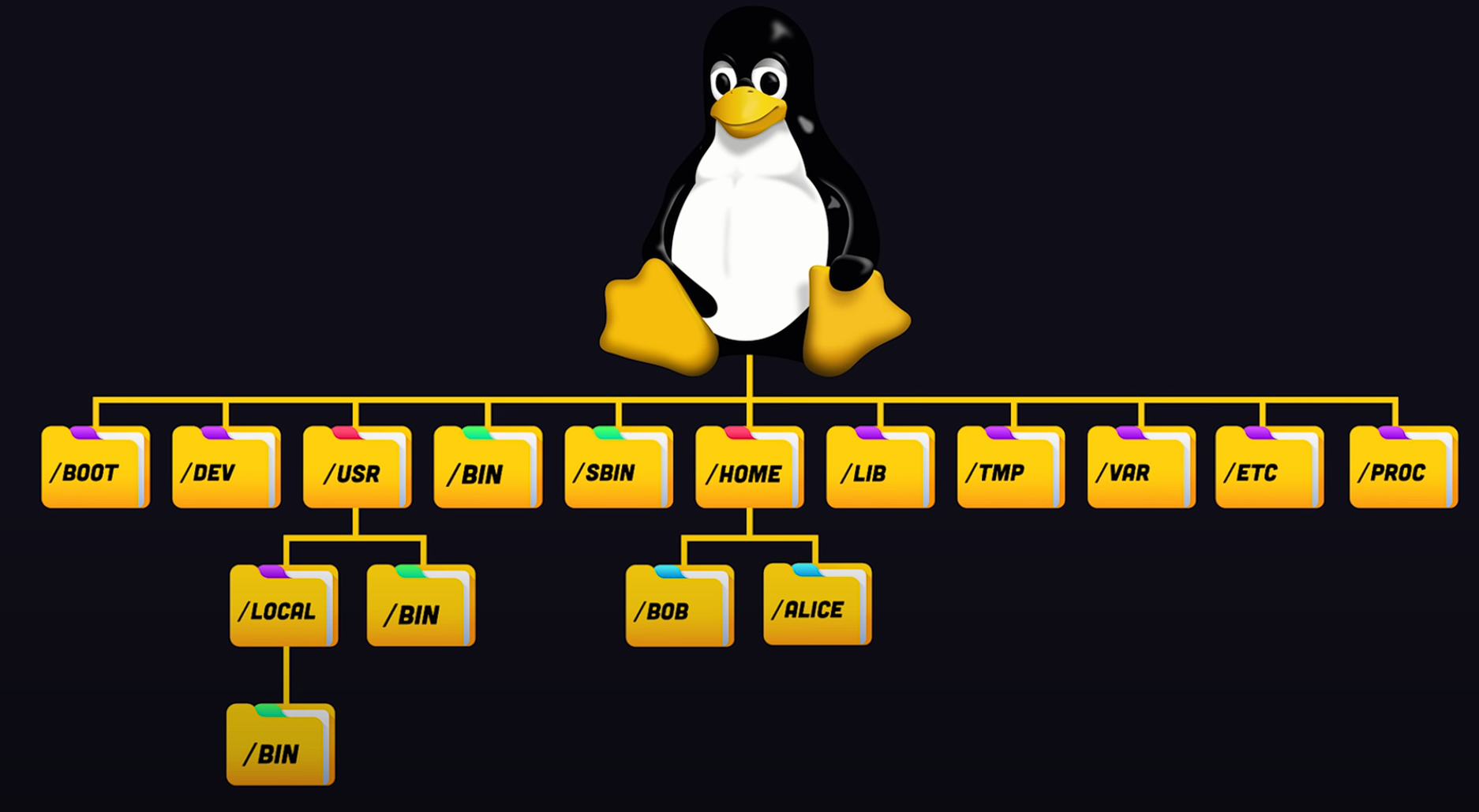

The Linux File System

/: The root directory, the highest level of the file system where all files and directories are stored.
/bin: Contains binary executables (e.g., cat, mkdir, ls). Named for BINaries.
/boot: Stores files necessary for booting the system. Avoid modifying this directory.
/dev: Contains device files for connected hardware (e.g., USBs, hard drives).
/etc: Holds configuration files (e.g., /etc/shadow, /etc/passwd). Exercise caution here.
/home: User directories (e.g., /Downloads, /Documents). The root user has a separate home.
/lib: Contains application libraries. Managed by the package manager; do not alter.
/media: Temporary mount points for removable media (e.g., USB drives).
/mnt: Legacy directory for mounting devices, mainly unused now.
/opt: Stores third-party software packages not installed via the package manager.
/proc: Contains information about running processes and system resources (CPU, RAM).
/root: Home directory for the root account, structured differently from standard user directories.
/run: Holds temporary files using RAM; files disappear after a reboot.
/sbin: Similar to /bin, but contains binaries for system administration.
/sys: Contains information about devices and drivers, managed automatically.
/srv: Holds data for services specific to the distribution, also managed automatically.
/tmp: Stores temporary files created by users and applications; deleted on reboot.
/usr: Contains shared libraries, binaries, and documentation for installed programs.
/var: Contains variable files that change frequently (e.g., log files, spool files).

The terminal - also called shell or console - is a tool that allows you to issue commands to the computer. Under Ubuntu, for example in Linux, you open the terminal with the key combination [Ctrl] + [Alt] + [t].

The following cell contains an example code, if you encounter a cell that is formatted as below you can execute it by entering the commands in a terminal:

The first imortant command is cd to change directory. This is a way of navigating through folders like in the file explorer.

Navigate to folder /tmp.

bash

cd /tmp

Navigate one folder back by combining cd with ...

bash

cd ..

To list the folders in the current directory use ls for list.

bash

ls

List the folders more detailed with ls -la. The -la flag stands for list all and long format. Or use ll as a shortcut.

bash

ls -la

bash

ll

Navigate to the home directory with cd ~ or just cd.

bash

cd

or ~ means home directory.

bash

cd ~

Print text on terminal with echo.

bash

echo "You are a wizard, Harry!"

Terminal Shortcuts

Kill Running Command: Press the following keys inside the corresponding terminal: [Ctrl] + [C]
Copy Content from Terminal: Press the [Shift] key while highlighting the content with your left mouse in the corresponding terminal, then to copy press:
[Ctrl] + [Shift] + [C]
Paste Content to Terminal: Press the following keys inside the corresponding terminal: [Ctrl] + [Shift] + [V]
Halting Current Shell: Press the following keys to halt the current terminal:
[Ctrl] + [S]
Continue Current Shell: Press the following keys to continue the current terminal:
[Ctrl] + [Q]
Open New Tab: To open a new tab in the current terminal:
[Ctrl] + [Alt] + [T]
Kill Current Terminal: To destroy the terminal (the command line must be empty):
[Ctrl] + [D]

The Bash Shell

Do not despair if you have no idea how to master the dark arts of the linux shell. This notebook will teach you all the spells needed to get started.

Shell: As we already know, the terminal is aka. shell. Using the shell, you can send commands to interact with your computer and hence receive and store data, process information, and perform various other simple or complex tasks.

Let's try some commands in our shell:

Let's print the current date and time:

bash

date

output

Sat 14 Sep 2024 01:35:12 PM CEST

Try to display the calendar of the current month:

bash

cal

output

   September 2024
Su Mo Tu We Th Fr Sa
 1  2  3  4  5  6  7
 8  9 10 11 12 13 14
15 16 17 18 19 20 21
22 23 24 25 26 27 28
29 30

Print the current working directory:

bash

pwd

output

/home/username

Make the terminal print a message in green:

bash

echo -e "\e[32mIt worked\e[0m"

output: It worked

So what have we just achieved?

We entered commands to interact with our computer
We retrieved data (date, cal, pwd)

Bash Shell

The Bash Shell is the default interpreter on many GNU/Linux systems, thus we have been using it even without even realising. If you worked with Python before you might already have stumbled upon this term. This is why our previous shell commands worked even without us defining bash as an interpreter.

bash

echo "$SHELL"

output

/bin/bash

Getting Help

Almost any software or operating system has some kind of built-in help to assist inexperienced users. If we talk about the Ubuntu terminal or Bash, then it also provides us with numerous ways to get help.

Tab completion on the Shell

First make sure to be in the home directory by typing cd and pressing enter.

bash

cd

Commands can be auto-completed inside the Shell.
2. For this, simply type the name of the first characters of the command followed by the tabulator key.

bash

cd [TAB TAB]

Now a list of all folders you can change directory cd to will be displayed.

output

.ros/      .vim/      catkin_ws/

Now try

bash

cd cat[TAB]

As you can see, the command is auto-completed which saves you time and prevents typos.

output

fhtw_user@razerblade:~/catkin_ws$

Command options -h --help

Most commands come with argument options which can be passed after the command, -h and --help are two of them.

Let's try to get help for the cat command. Remember with cat you can look into textbased files.

bash

cat -h

As you can see -h does not work with cat but it suggests that --help does.

output

cat: invalid option -- 'h'
Try 'cat --help' for more information.

Let's try --help with the cat command.

bash

cat --help

Here you can see the help page of the cat command.

output

Usage: cat [OPTION]... [FILE]...
Concatenate FILE(s) to standard output.

With no FILE, or when FILE is -, read standard input.

  -A, --show-all           equivalent to -vET
  -b, --number-nonblank    number nonempty output lines, overrides -n
  -e                       equivalent to -vE
  -E, --show-ends          display $ at end of each line
  -n, --number             number all output lines
  -s, --squeeze-blank      suppress repeated empty output lines
  -t                       equivalent to -vT
  -T, --show-tabs          display TAB characters as ^I
  -u                       (ignored)
  -v, --show-nonprinting   use ^ and M- notation, except for LFD and TAB
      --help     display this help and exit
      --version  output version information and exit

Examples:
  cat f - g  Output f's contents, then standard input, then g's contents.
  cat        Copy standard input to standard output.

GNU coreutils online help: <https://www.gnu.org/software/coreutils/>
Report cat translation bugs to <https://translationproject.org/team/>
Full documentation at: <https://www.gnu.org/software/coreutils/cat>
or available locally via: info '(coreutils) cat invocation'

---
### Manual Pages

Many commands come with manual pages. You can scroll through those by putting man as a prefix to your command. But in this Docker container is is not available.

```bash title="bash"
man cat

And as our great headmaster Albus Dumbledore stated 🧙🏼‍♂️: "Help will always be given at Hogwarts, Harry, to those who ask for it."

The first point of interest is the public library in the fourth floor 📖.

To acompany you with your search in the public library google please see this cheatsheet that will help you with your search.

Summary

We have learned that:

With cd we can change directories.
ls lists the files and folders in the current directory.
pwd prints the current working directory.
echo prints text to the terminal.
BASH is a command languge interpreter. The default interpreter for Ubuntu is BASH.
kill a command by pressing [Ctrl] + [c]
SHELL is a macro (command) proccessor which allows for interactive and non-interactive execution.
Getting Help: Most commands come with the possible arguments -h, --help, and or have a man-page

The Filesystem

The most basic "skill" in linux is navigating through the filesystem. The filesystem contains all the files and folders stored on your computer.

Files: store data
Folders: (aka. directories) store files and other folders

Command	Explanation
ls	List files and folders in current directory
ls -la	List all (including hidden) files and folders in current directory with their permissions
cd `dir-path`	Change directory to `dir-path`
pwd	Print current working directory
touch `file-name`	Create or update `file-name`
mkdir `folder-name`	Create `folder-name`
cat `file-name`	Output content of `file-name` to terminal
rm `file-name`	Delete `file-name` (Files deleted with rm can't be restored)
rm -rf `folder-name`	Delete `folder-name` (Files deleted with rm can't be restored)
cp `file1` `file2`	Copy content of `file1` to `file2`
mv `file1` `file2`	Move content of `file1` to `file2`
chmod octal `file`	Change the permission of `file` to octal, which can be found separately for user, group, other by adding

To open a new tab from inside an existing terminal press:
[CTRL] + [SHIFT] + [T]

Bash Commands

Here are some basic Bash commands you can run in a terminal:

cd /tmp: Changes the directory to /tmp.

bash

cd /tmp

touch first_file: Creates an empty file named first_file.

bash

touch first_file

ls: Lists the files and folders in the current directory.

bash

ls

You should now see your created file.

output

first_file

mkdir first-folder: Creates a directory named first-folder.

bash

mkdir first-folder

ls: Lists the files and folders in the current directory.

bash

ls

touch first-folder/second_file: Creates an empty file named second_file inside the first-folder directory.

bash

touch first-folder/second_file

ls first-folder/: Lists the files inside the first-folder directory.

bash

ls first-folder/

output

second_file

rm -rf first-folder first_file: Removes the first-folder directory and the first_file file (files deleted with rm cannot be restored).

rm stands for remove
-r for recursive (delete all files and folders inside the folder)
-f for force (do not ask for confirmation)

bash

rm -rf first-folder first_file

Now when you list the files and folders in the current directory, you should see that the first-folder directory and the first_file file are gone.

bash

ls

Scripting

Basically you can put any sequence of commands that you enter in a terminal also inside a script file. The complexity of bash scripts ranges from simple folder creation to complex driver installations. Let's see how that is done in the following example. Please copy the following code in your favorite IDE and create a file named first_script.sh.

Install a text editor of you choice (e.g. nano), or you can make a now file in visual studio code called first_script.sh:

bash

sudo apt-get install nano -y

Change to your home directory:

bash

cd

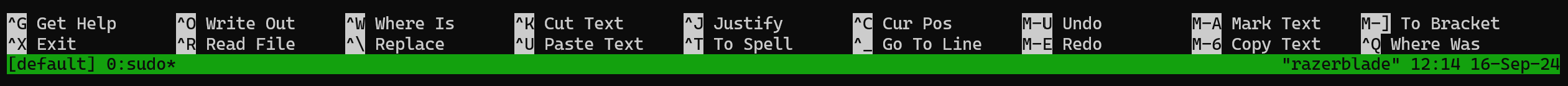

Make a new file called first_script.sh and open it with nano:

bash

sudo nano first_script.sh

Here's an example script (first_script.sh). Copy the following code into the file and save it:

bash

#!/bin/bash

# The first line in any Shell script must be the shebang (#!) followed by the path to the interpreter.
# In our case thats #!/bin/bash

FOLDER_NAME="/tmp/fhtw"     # assign the string /tmp/fhtw to the variable FOLDER_NAME.
                            # Attention variable declaration in BASH allowes no " " (space) between the variable name and the value!

echo "Creating folder $FOLDER_NAME"     # Printing the message 'Creating folder' followed by the variable. Note the "$" infornt of the variable name.
mkdir -p "$FOLDER_NAME"     # Creating a directory using the variable with argument -p (Create intermediate folders if not existent)
echo "Return value of previous command: $?" # All commands return a value. 0 means everything was ok.
cd "$FOLDER_NAME"           # Change directory inside the new folder
echo "Current folder: $(pwd)"           # Print the current working directory. Here we use "(...)" to create a subshell. Subshells can be used to directly process output of commands
cd .. && echo "Current folder: $(pwd)"  # Move one directory up (cd ..) and execute (if first command [cd ..] succeeds) the same as above
cd "$FOLDER_NAME"           # Change directory again
exit 0

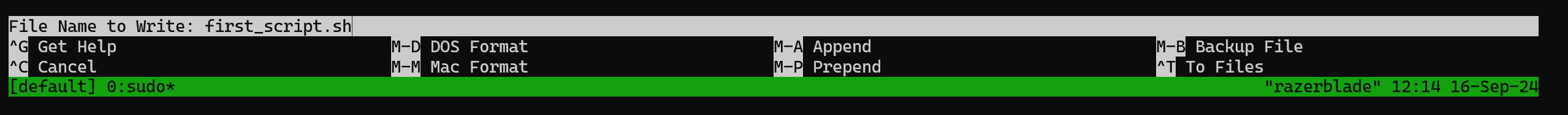

ctrl + x to exit

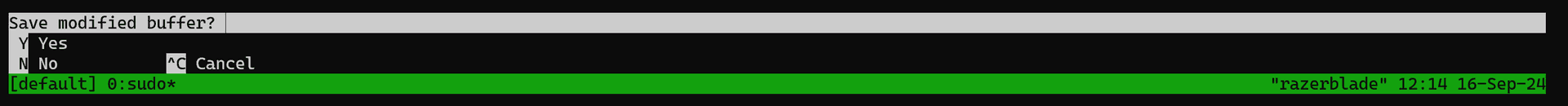

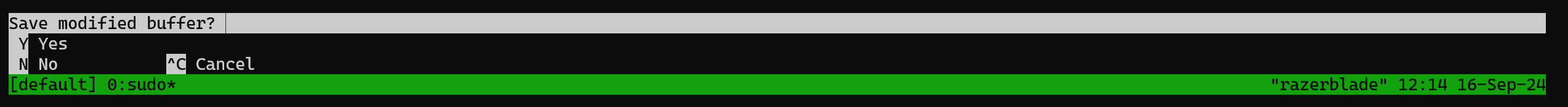

y to save

enter to close

Run Scripts

Two steps are needed to run a script:

Make the script executable (the file name should be green and bold):

bash

sudo chmod +x first_script.sh

sudo means that you are executing the command as a super user.
chmod is a command to change the file permissions change mode.
+x means that the file is now executable.

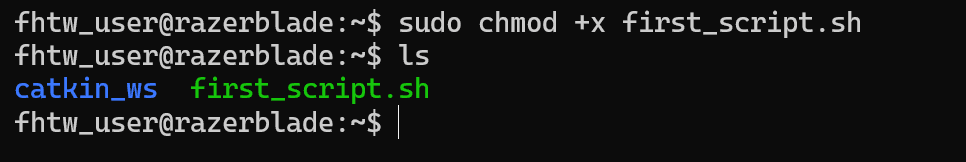

Verify that the file is now executable by typing ls and checking if the file name is green and in some cases also bold.:

bash

ls

Run the script:

bash

bash first_script.sh

bash

./first_script.sh

bash

output:
Creating folder /tmp/fhtw
Return value of previous command: 0
Current folder: /tmp/fhtw
Current folder: /tmp

Summary of the script:

We created a folder /tmp/fhtw
We printed the return value of the previous command (0 means everything was ok)
We printed the current working directory
We moved one directory up
We moved back to the folder /tmp/fhtw

Piping and Grabbing Stuff

In Linux systems, the grep command is used to filter elements. For instance:

bash

hostname -I | grep -oP '(\d{1,3}\.){3}\d{1,3}'

Here's what we did:

We used the hostname -I command to get the IP address of the machine.
We piped (|) the output of the hostname -I command to the grep command.
We used the -o flag to show only the matching part of the line.
We used the -P flag to enable Perl-compatible regular expressions.
We used the regular expression '(\d{1,3}\.){3}\d{1,3}' to match an IP address.

Grep

Grep lets you search for strings in files. The basic syntax is:

bash

grep "search_string" "file_name"

Here we grep ervery line with the word echo.

bash

grep -n "echo" first_script.sh

bash

output:
9:echo "Creating folder $FOLDER_NAME"     # Printing the message 'Creating folder' followed by the variable. Note the "$" infornt of the variable name.
11:echo "Return value of previous command: $?" # All commands return a value. 0 means everything was ok.
13:echo "Current folder: $(pwd)"           # Print the current working directory. Here we use "(...)" to create a subshell. Subshells can be used to directly process output of commands
14:cd .. && echo "Current folder: $(pwd)"  # Move one directory up (cd ..) and execute (if first command [cd ..] succeeds) the same as above

-n shows line numbers

This does the same.

bash

cat first_script.sh | grep -n "echo"

We have learned that we can use grep either:

by directly looking in a file/ files with grep
by piping the output of the previous commnand to grep

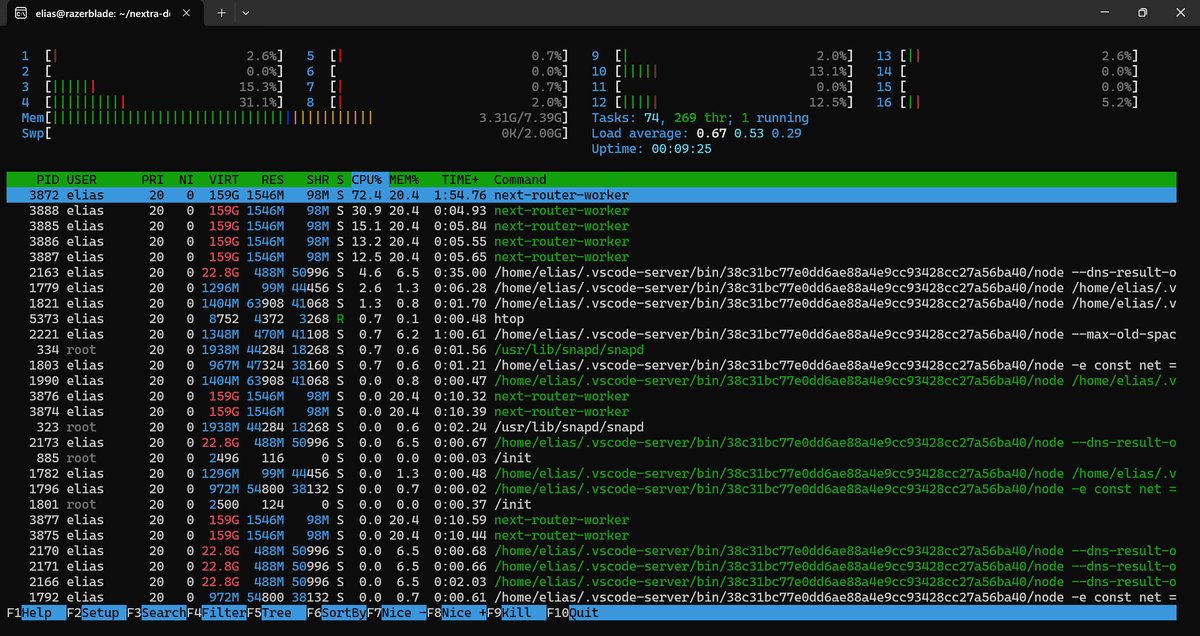

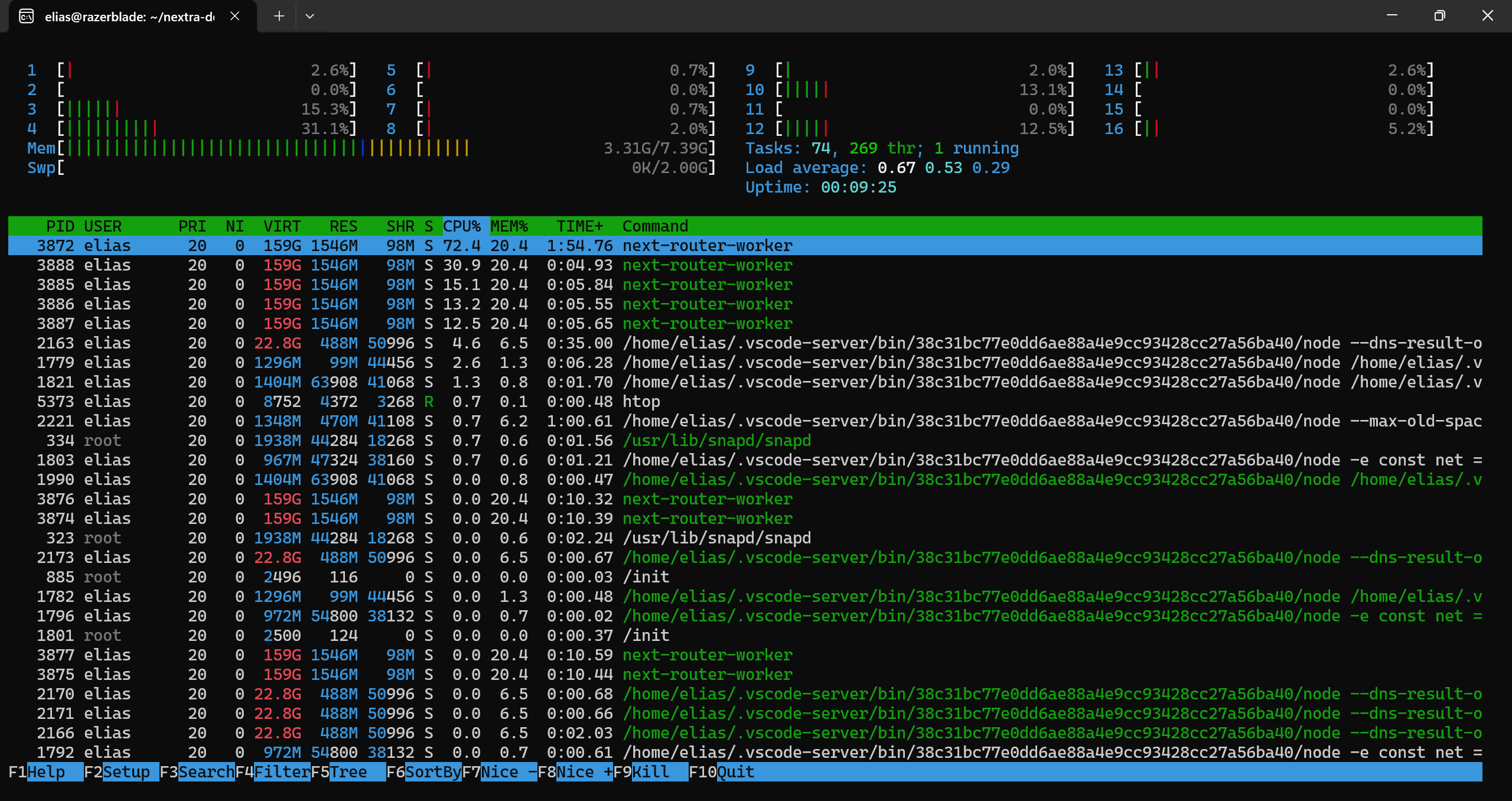

htop

To moitor the system resources you can use htop. Simply type htop in the terminal and you will see a list of all running processes and the CPU and memory usage.

bash

htop

To exit htop press q or like in the terminal to stop any porcess ctrl + c.

We have learned that:

BASH is a command language interpreter. The default interpreter for Ubuntu is BASH.
SHELL is a macro (command) processor which allows for interactive and non-interactive execution.
Getting Help: Most commands come with the possible arguments -h, --help, and/or have a man-page
We can use grep either by directly looking in a file/files or by piping the output of the previous command to grep
Any command that can be run on the command line may be incorporated into a script
We can create variables in scripts
Bash scripts must have executable rights
We can use variables using the $ operator
To use the output of a command as a variable, we must use MY_VAR="$(<command>)"
We should return an int between 0 - 254 from our script depending on the final state of our script using exit
We can use the htop command to monitor system resources

1. Linux Basics for Ubuntu

Linux Basics for Ubuntu

Summary

What will you learn with this unit?

The Linux File System

Basic terminal interaction:

Terminal Shortcuts

The Bash Shell

Let's try some commands in our shell:

So what have we just achieved?

Bash Shell

Getting Help

Tab completion on the Shell

Command options -h --help

Summary

The Filesystem

Bash Commands

Scripting

Run Scripts

Piping and Grabbing Stuff

Grep

htop

We have learned that:

On this page
